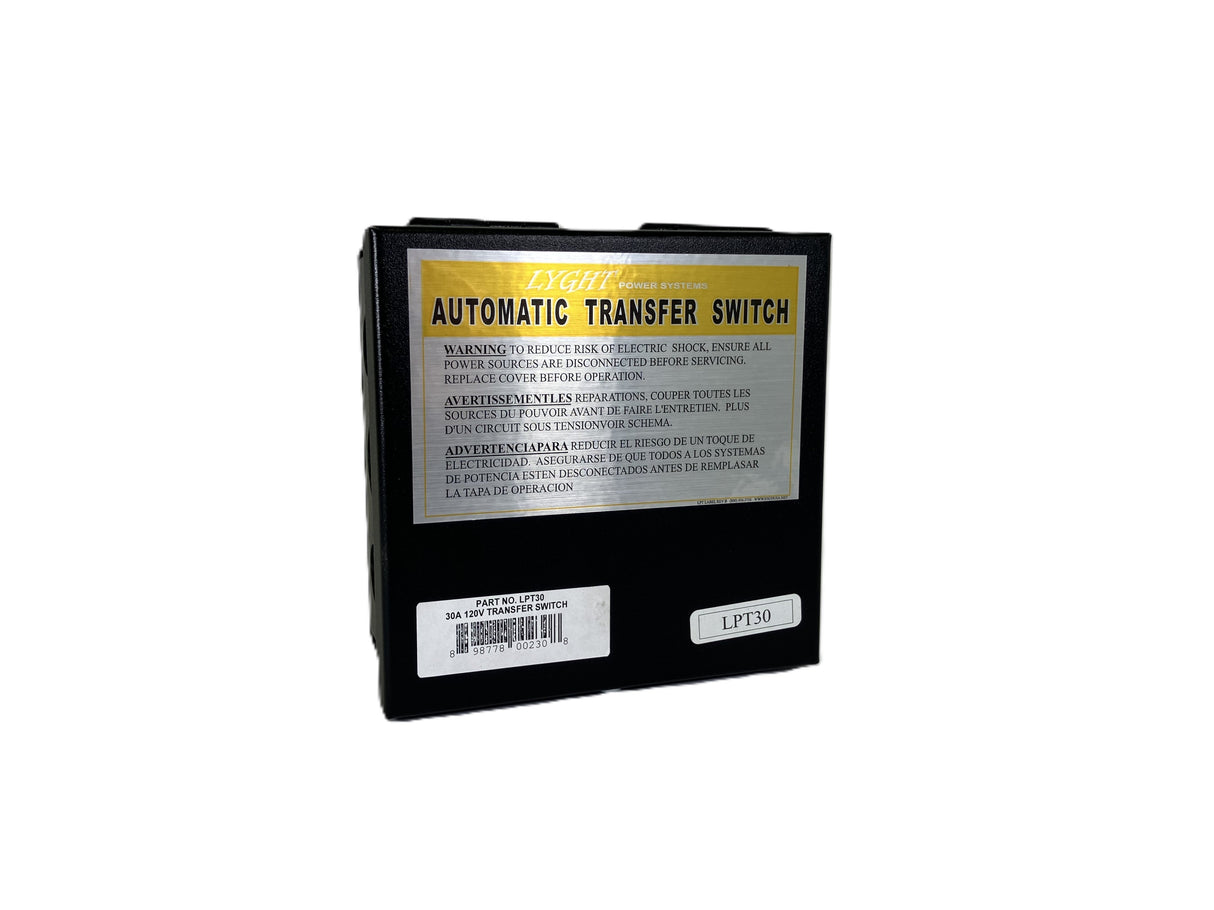

LPT30 Automatic Transfer Switch

The LPT30 is designed to automatically switch between multiple power sources, such as shoreline power, generator power, or electronic inverter to shoreline/generator. It is primarily intended for use with generators up to 4.5kW, external power cords up to 120VAC, 30A, 1PH, 60HZ, and electronic inverters up to 3600 watts.

Features:

• Automatically switches from power cord to generator by simply starting the generator.
• Heavy-duty relay assembly handles 30 amp power cords and up to 4.5kW generators.
• Dependable switching transfers both hot and neutral legs using a heavy-duty DPDT relay.
• Designed with a terminal block to simplify wire connections.
• Built-in time delay allows the generator to reach optimal speed before switching.
• Quick and easy installation.
• Suitable for OEM and aftermarket applications.

Specifications:

• Contractors: General purpose DPDT 30 amp relay.
• Coil: 110VDC, 2 watts.
• Time Delay: Custom time delay, 30 seconds nominal; may bypass time delay with switch on board.
• Physical Size: 6"" x 6"" x 3"".
• Knockouts: 1/2"" and 3/4"".

Cautions:

• Install vertically or horizontally in a dry, accessible area.
• Maximum service: 120 VAC, 30 AMPS single phase; must be used with a circuit distribution panel having a main breaker rated 30 AMPS-1 Pole, or less.
• Suitable for installation with power supplies having rated outputs not larger than 120VAC, 30AMPS.
